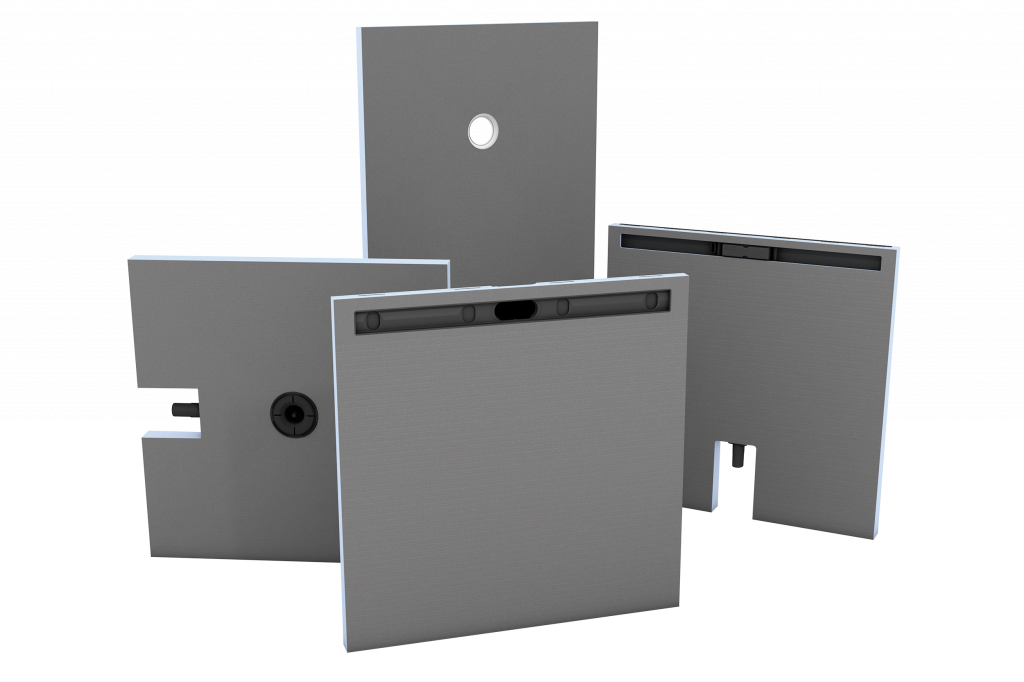

wedi Fundo Shower Systems:
The perfect foundation for the shower

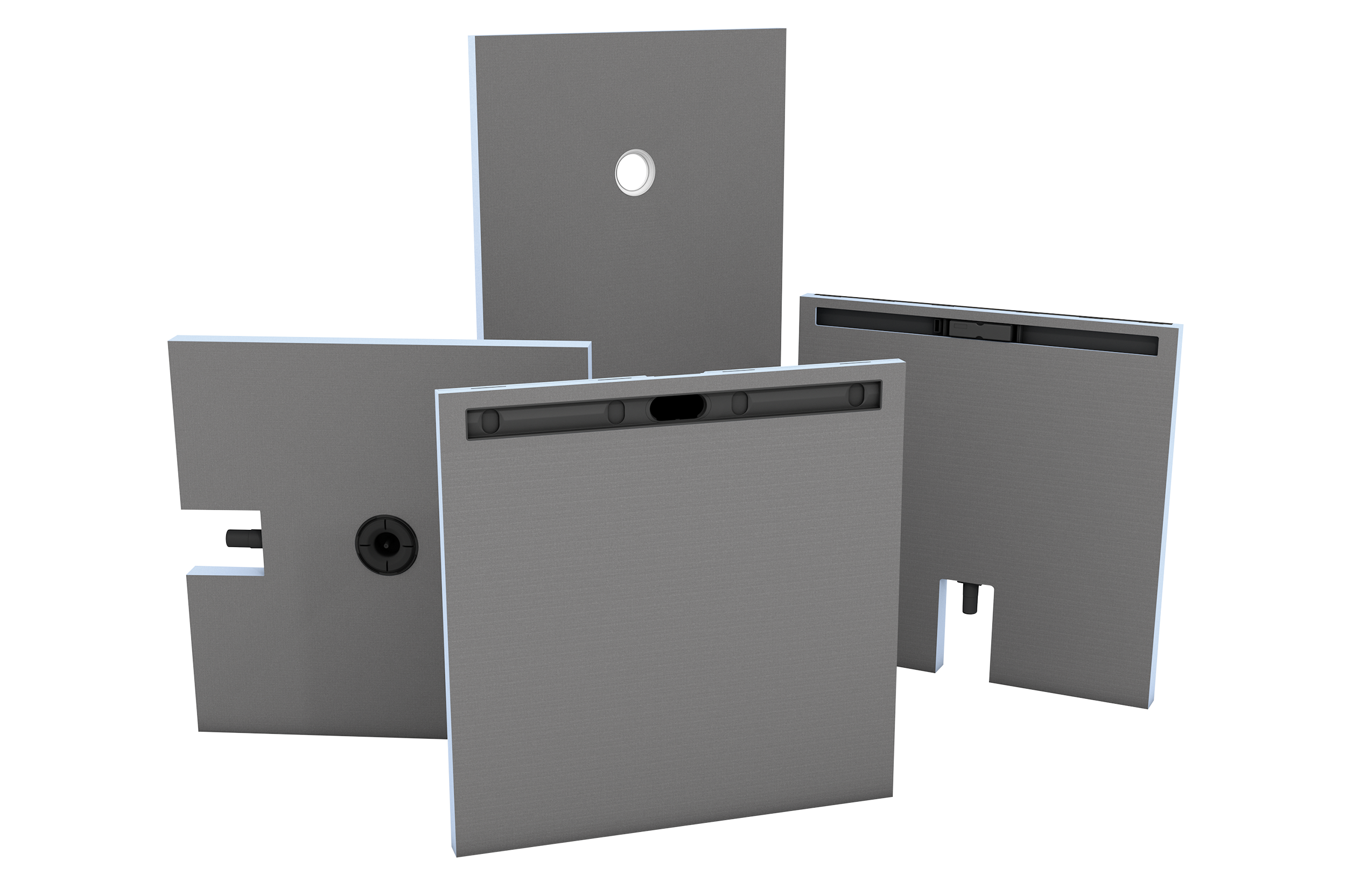

Whether shower systems with circular or linear drainage, whether with a classic shower element or a complete system including integrated drainage technology: The enormous variety of wedi Fundo shower systems offers the right solution for every situation.
1
Solutions for your project

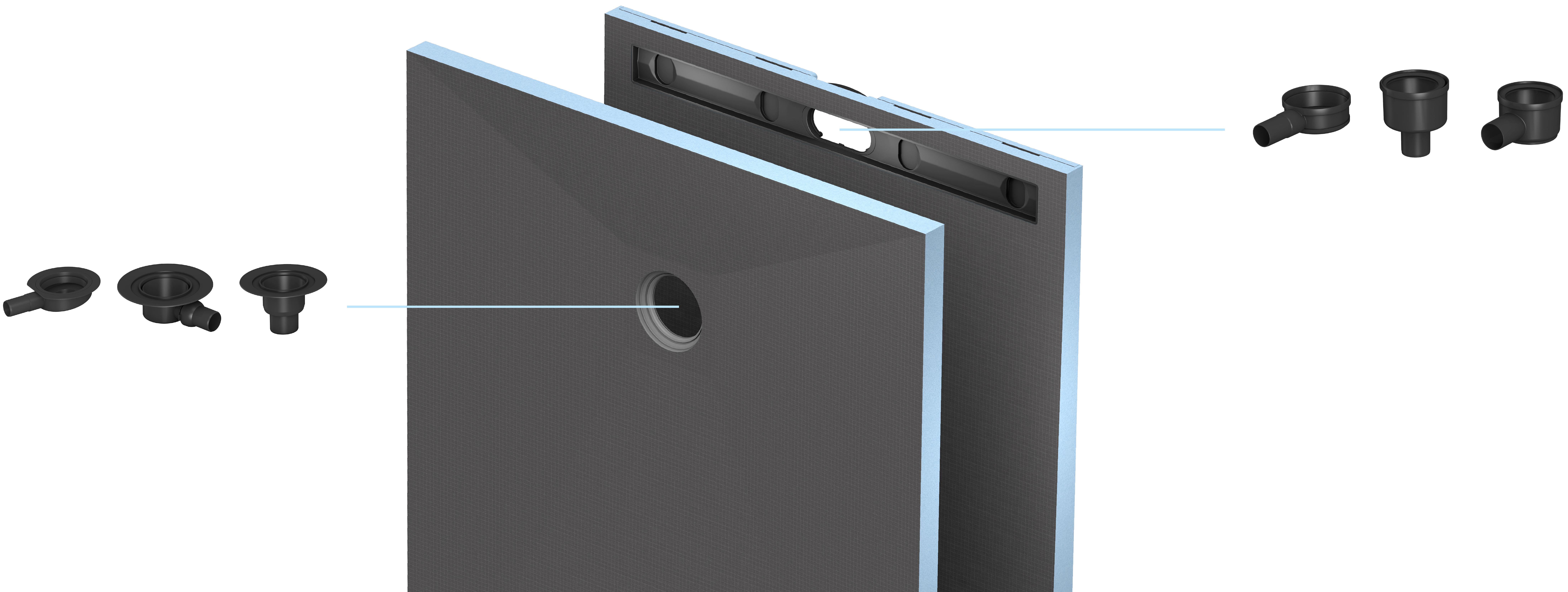

Classic system
with separate drain technology
The perfect combination For classic shower systems, the wedi Fundo shower elements offer the right drainage for every installation situation.
Different design covers are available for both circular drains and linear drains.

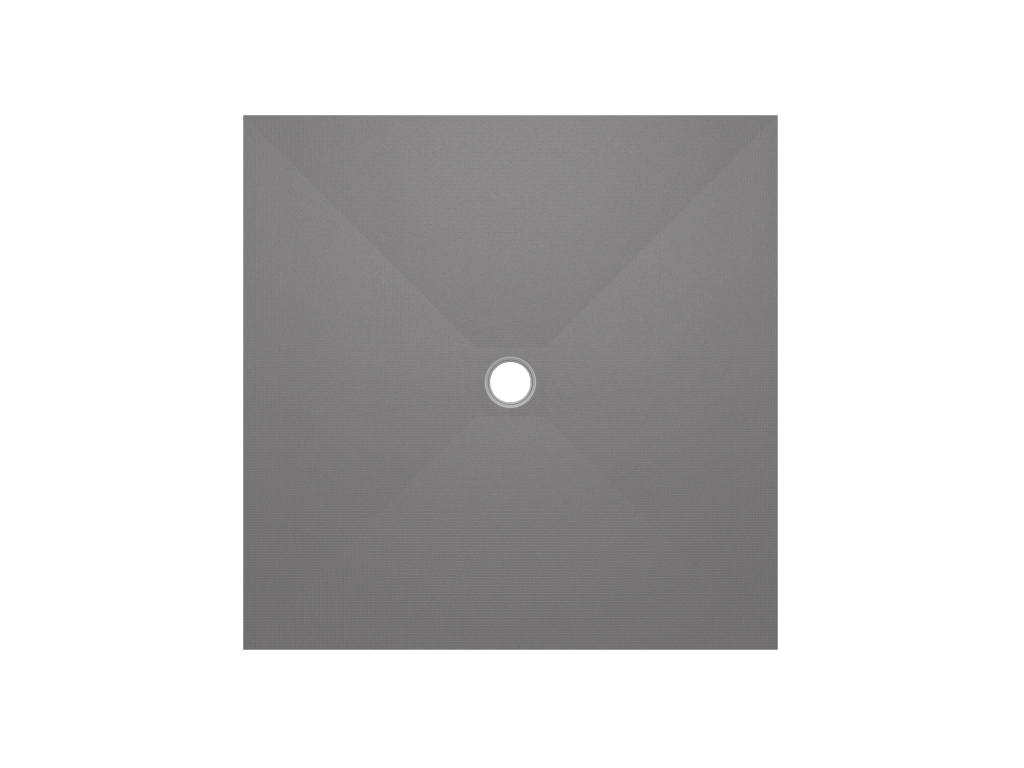

Fundo Primo
Different versions
Rectangular or square
Center or off-center drains
Fundo Riolito Neo
Various channel lengths
Rectangular or square
drain close to the wall

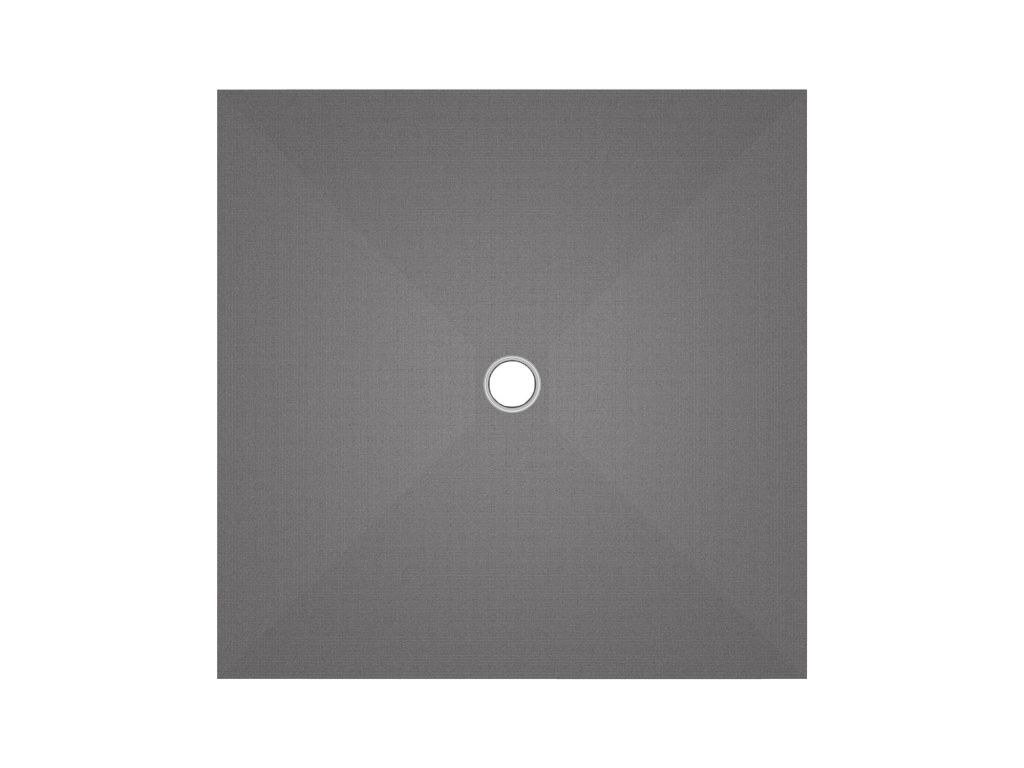

Fundo Ligno Plus
Special solution for flush installation in wooden beam ceilings
Rectangular or square
Center or off-center drains

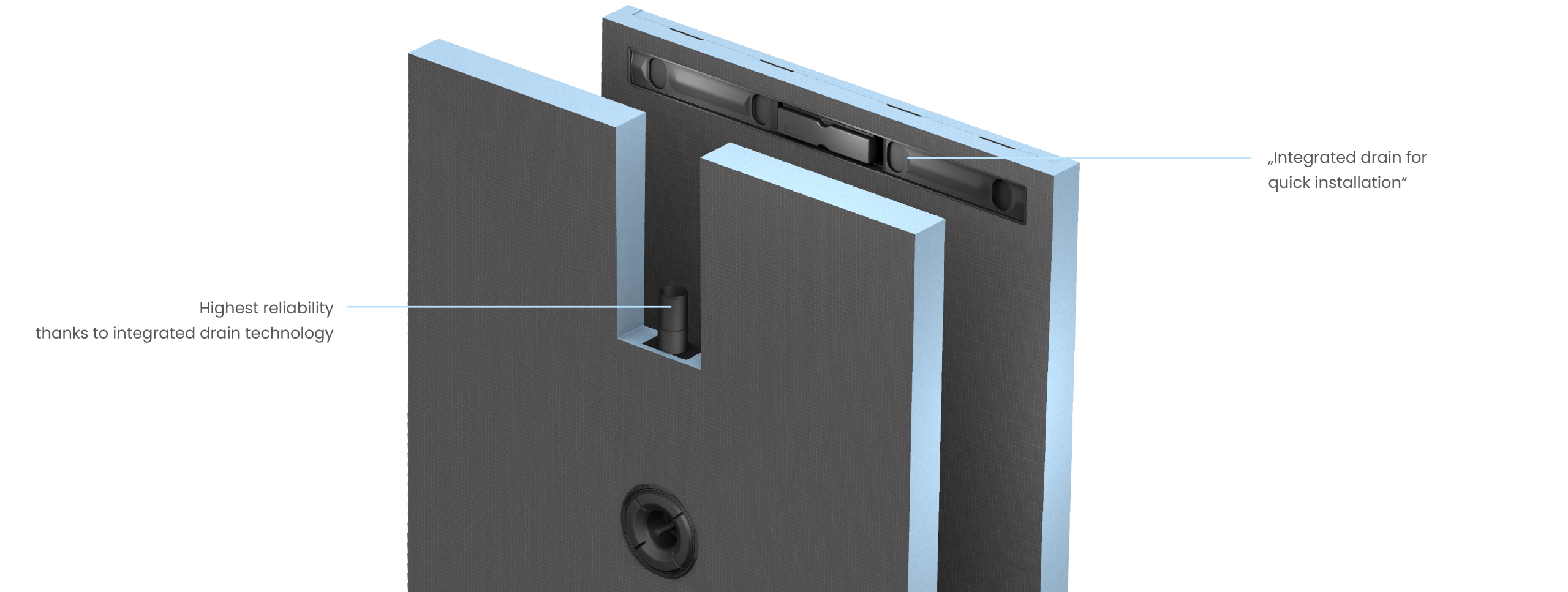

Complete system
with integrated drain technology
Super practical, super safe: For all wedi Fundo complete systems, the drain is already integrated into the shower element at the factory.
This not only saves time on the construction site, but also reduces the installation height.

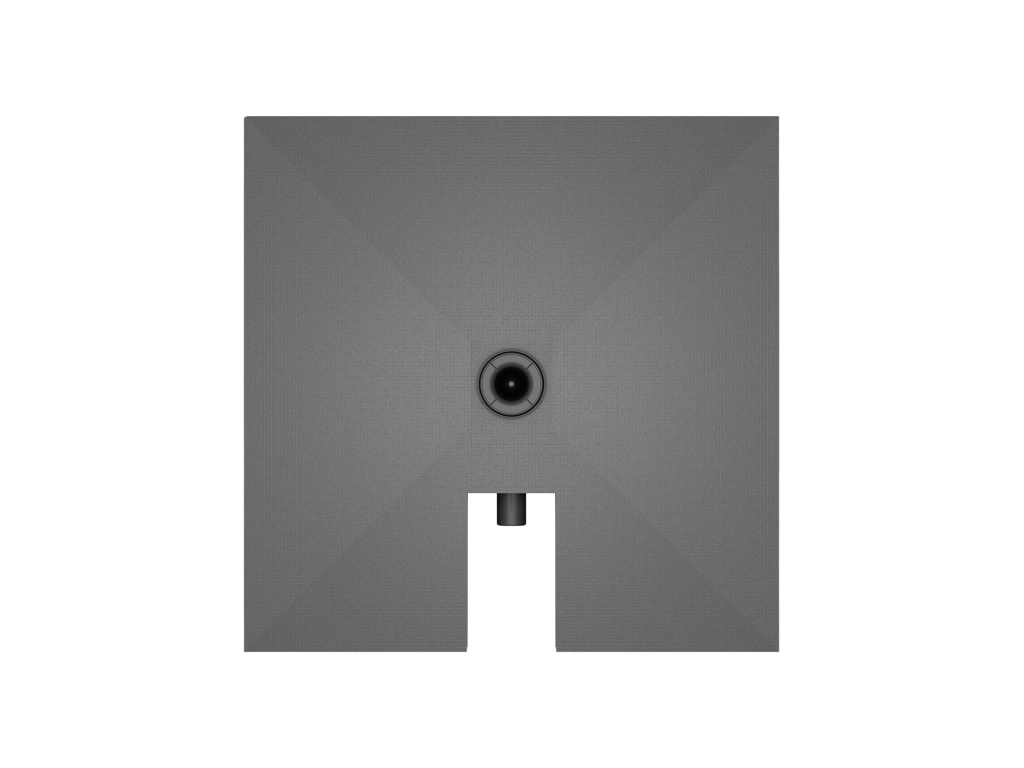

Fundo Integro
connecting cable: DN 50
flat & compliant
7 different sizes

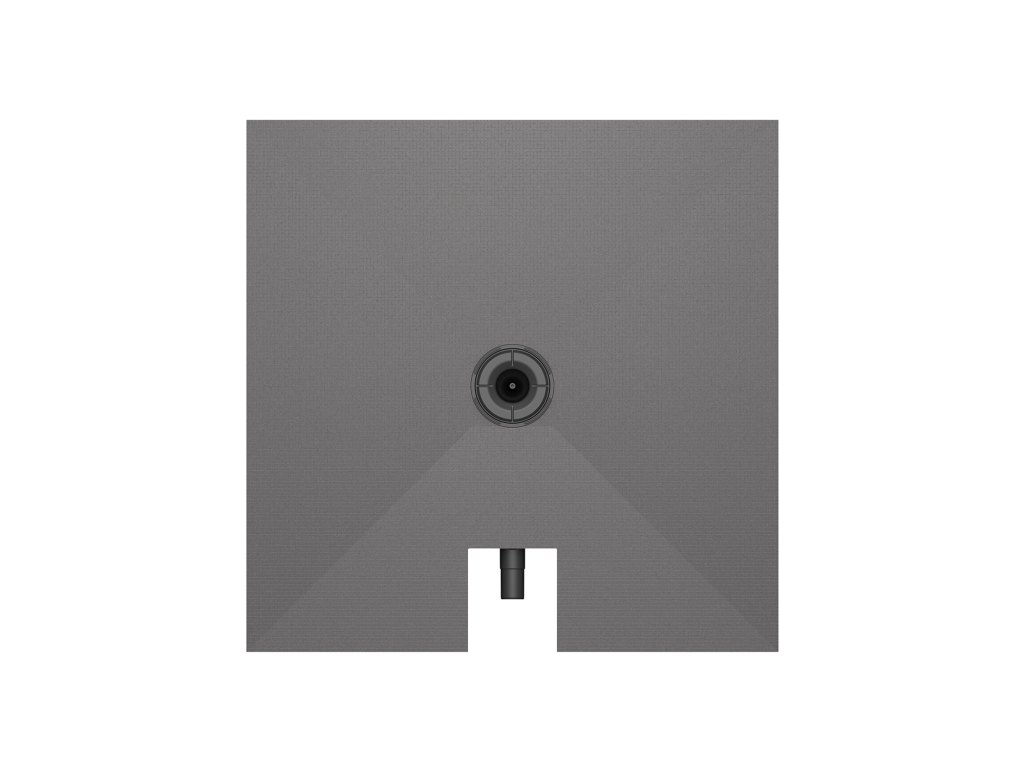

Fundo Plano
connecting cable: DN 40
extremely flat
6 different sizes

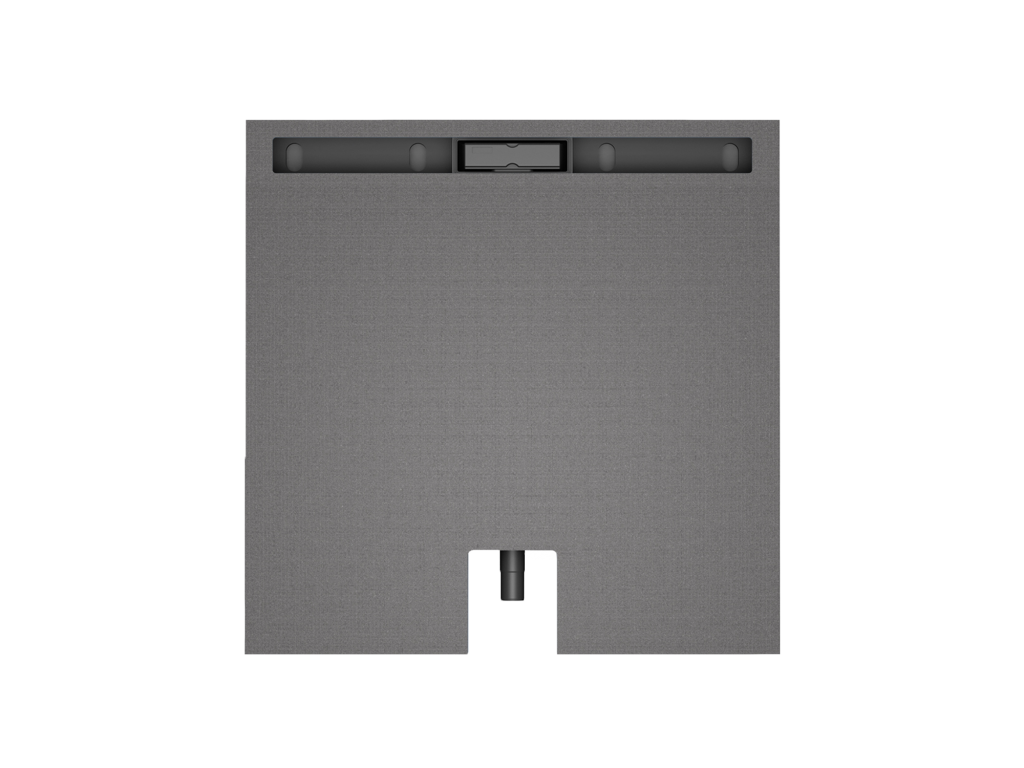

Fundo Plano Linea
connecting cable: DN 40
extremely flat
4 different sizes
1
Lightweight filling
ARDEX LS Bonded Lightweight Aggregate
The ready-to-use system for producing a lightweight, heat-insulating and quick-laying lightweight aggregate under wedi Fundo shower elements.
2
Sealing
ARDEX S 7 PLUS
Flexible, one-component sealing slurry for sealing with variable consistency adjustment and a very wide range of applications.
ARDEX Tricom sealing set
TRICOM sealing set for flexible and water-impermeable bridging of movement joints, edge joints as well as connections and penetrations at risk of cracks.
3
Bonding
ARDEX X 90
MICROTEC3 flex adhesive for the production of a flexible adhesive bed. Particularly suitable for laying large-format tiles in outdoor and permanent wet areas.
4
Grouting
ARDEX G10 PREMIUM FLEX-GROUT
With special fillers and additives for fine joint surfaces and increased color consistency, regardless of the water absorption of the floor covering material used.
ARDEX SE SANITARY
silicone sealant with fungicidal finish.
5
Tools
ARDEX NEXT LEVEL TOOLS
Classic tools redesigned – Next Level Tools. Better ergonomics, perfect handling, high-quality workmanship of occupational safety, through tools to trowels and spatulas.

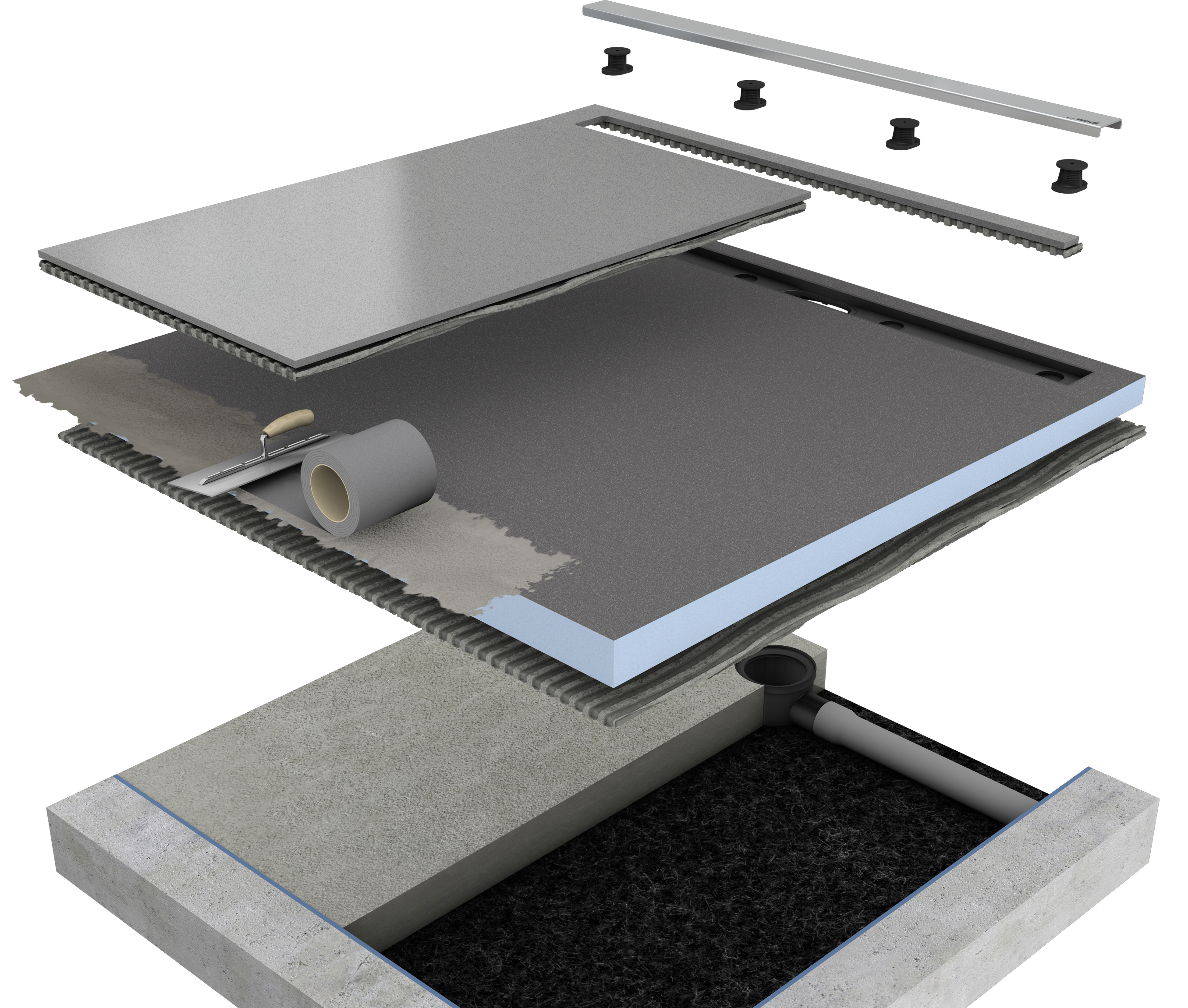

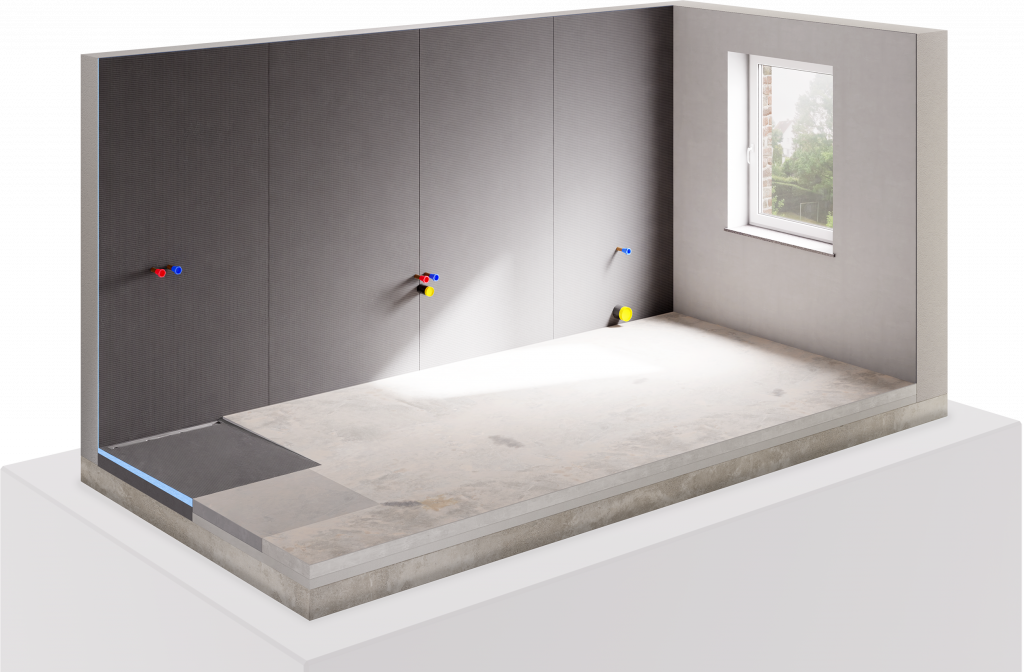

How it works

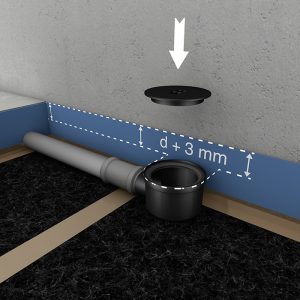

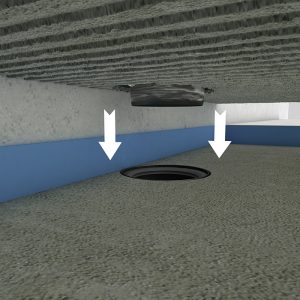

Align the position of the wedi Fundo drain pot.

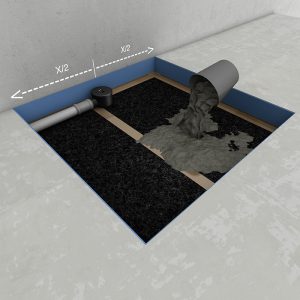

Filling the shower area with ARDEX LS-bonded light fill
Apply ARDEX X 90 to the entire surface of the wedi Fundo shower element and let it fit into the floor.

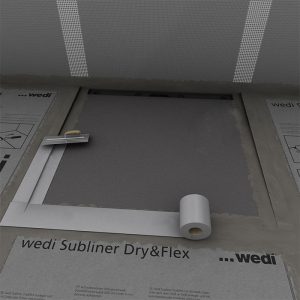

Seal all transitions and joints with ARDEX S 7 PLUS and ARDEX SK 12 TRICOM sealing set.
And which products are the right ones for your project?

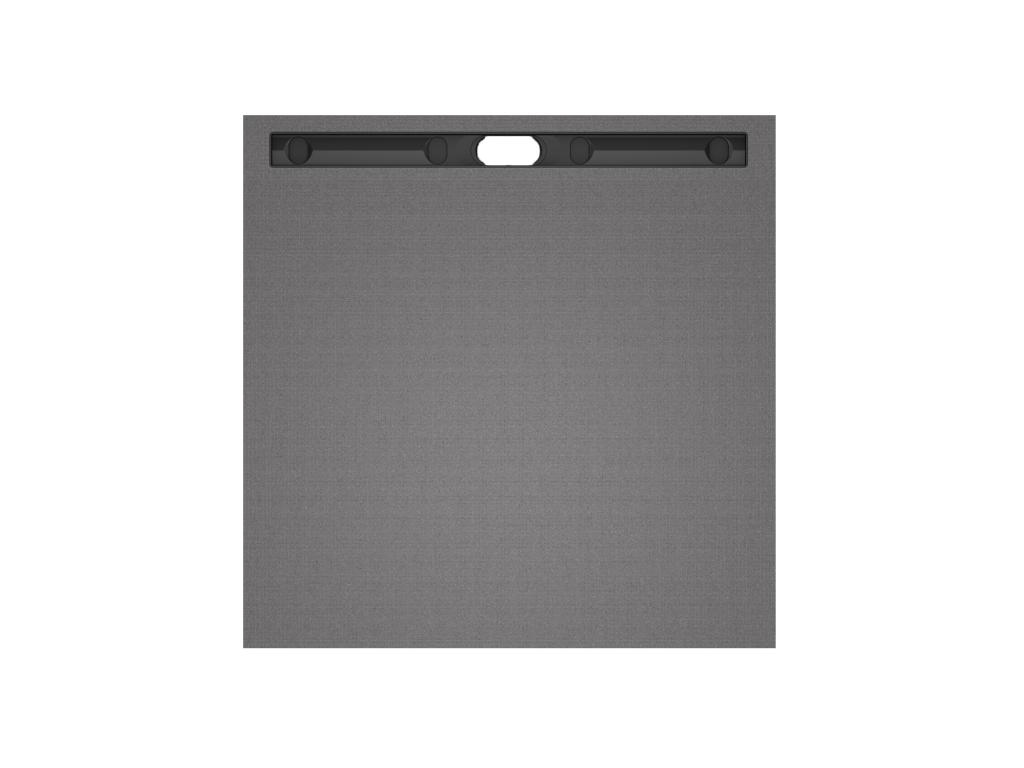

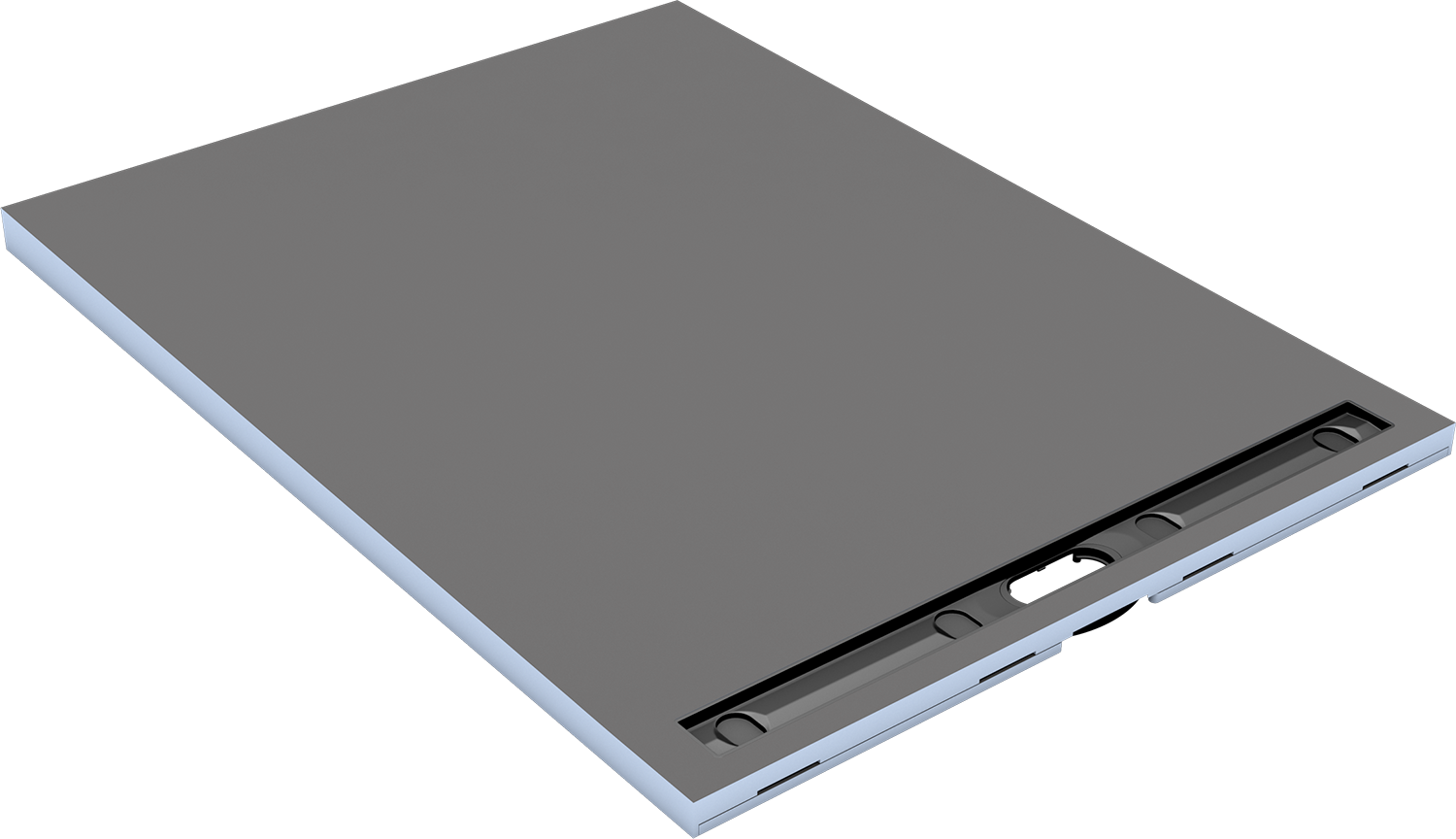

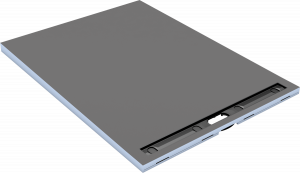

Fundo Riolito Neo
Rectangular shower element, channel length 800 mm, drain decentralized and close to the wall, 1,200 × 900 × 50 mm

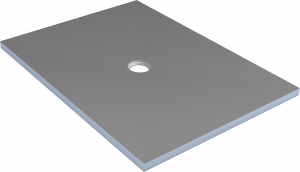

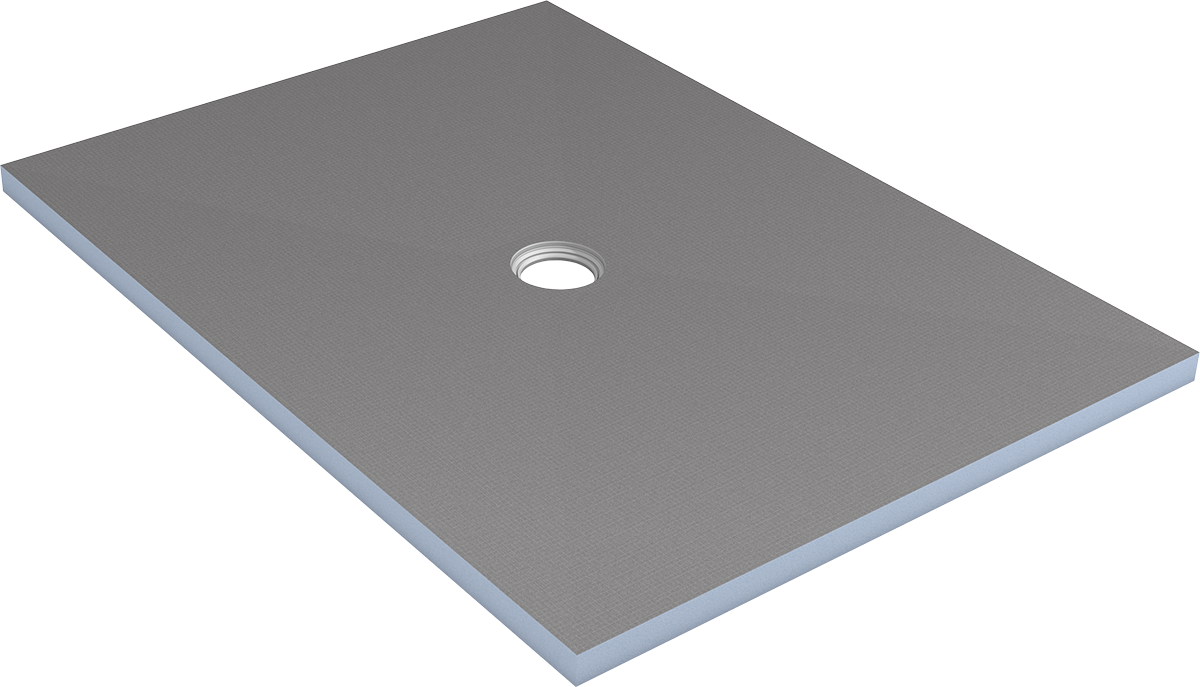

Fundo Primo
Rectangular shower element, central drain, 1,200 × 900 × 40 mm

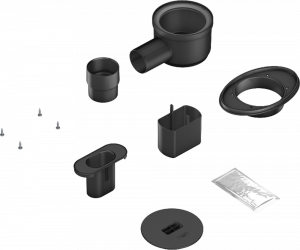

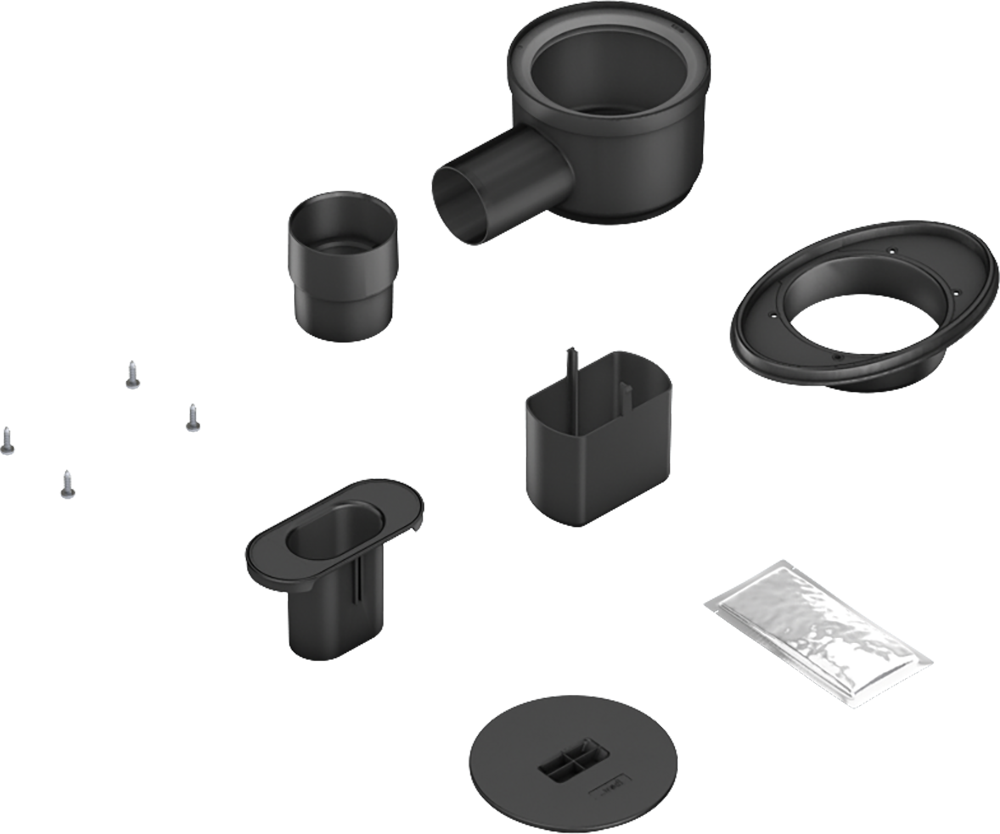

Fundo gutter drain
Horizontal, DN 50, for Fundo shower elements with line drainage.

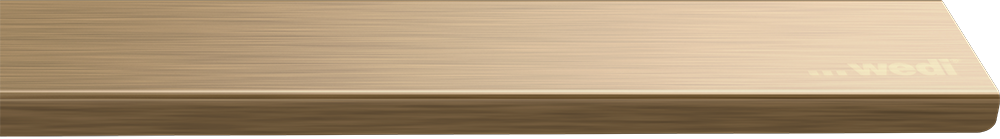

Fundo gutter cover
Standard in metallic rose-gold for Fundo shower elements with line drainage.

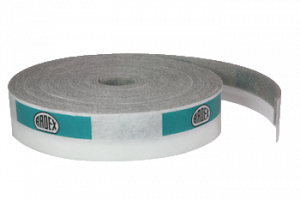

ARDEX TP 50
Self-adhesive edge insulation strip to avoid sound bridges.

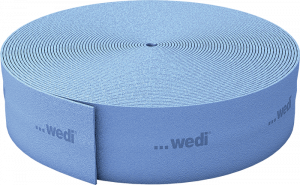

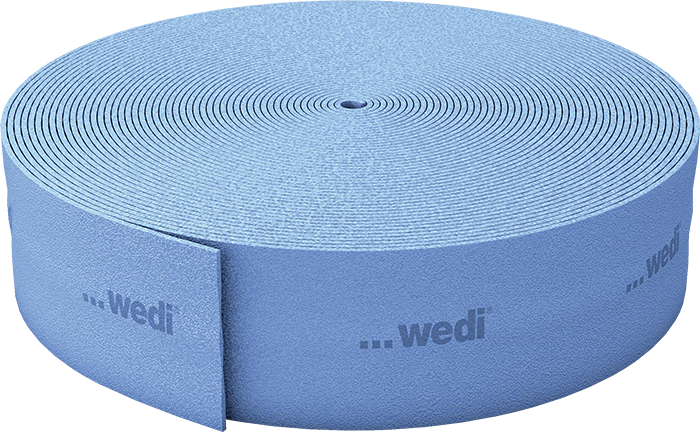

wedi Tools edge insulation strips
Edge insulation strips to avoid sound bridges.

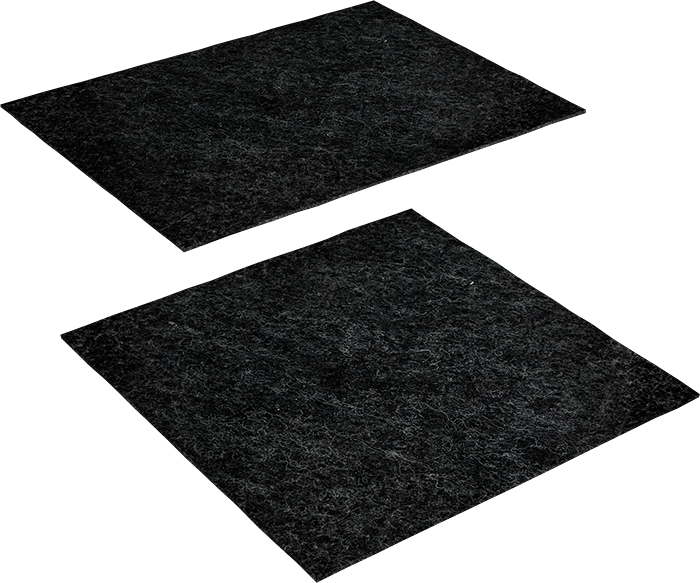

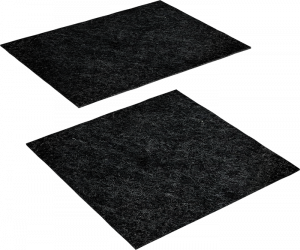

wedi Nonstep ProS
Thin-layer sound insulation mat for decoupling and sound insulation.
ARDEX S 7 PLUS
Flexible, one-component sealing slurry for sealing with variable consistency adjustment.
wedi 520 sealant
Flexible and 2-component sealing slurry.
ARDEX SK 12 TRICOM SEALING SET
Sealing tape, corners and sleeves for flexible and waterproof bridging.
Fundo sealing set 87
2-component sealing slurry incl. Sealing tape/sealing corners for flexible impact sealing.
ARDEX X 90
High performance flex adhesive for laying large-format tiles. Walkable after 3 hours.
wedi 320 sealant
Universal and flexible thin-bed mortar.
ARDEX G 10
PREMIUM Flex grout easy to insert with a long wash window.
ARDEX RG 12
Epoxy grout. High-strength, chemical-resistant with a fine and smooth joint surface.
ARDEX SE
Silicone sealant with fungicidal finish for elastic closing of joints.
ARDEX SC Matt
Matte with preventive protection against mold.
ARDEX LS
ARDEX LS is a bonded lightweight pile.
ARDEX NEXT LEVEL TOOLS BRICKLAYING TROWEL
Tools redesigned – Next Level Tools.
ARDEX NEXT LEVEL TOOLS NOTCH TROWEL
Tools redesigned – Next Level Tools.
Quickly installed and sealed. Continue to the next step!
